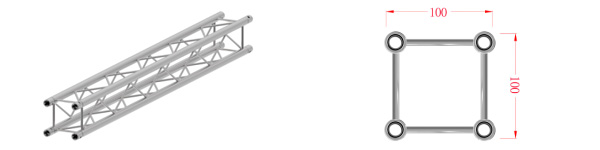

This is one of samll size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.
| Model | Description | Sizes | Length/mm | Weighe/kg | ||||||||||||
| UR-QSC100-500 | Material：6082-T6 Main Tubes：20*2.0mm Braces：6*1.0mm Diagonal:5mm Spacer:20*50mm | 100*100 | 500 | 1 | ||||||||||||
| UR-QSC100-1000 | 100*100 | 1000 | 2 | |||||||||||||
| UR-QSC100-1500 | 100*100 | 1500 | 3 | |||||||||||||
| UR-QSC100-2000 | 100*100 | 2000 | 4 | |||||||||||||
