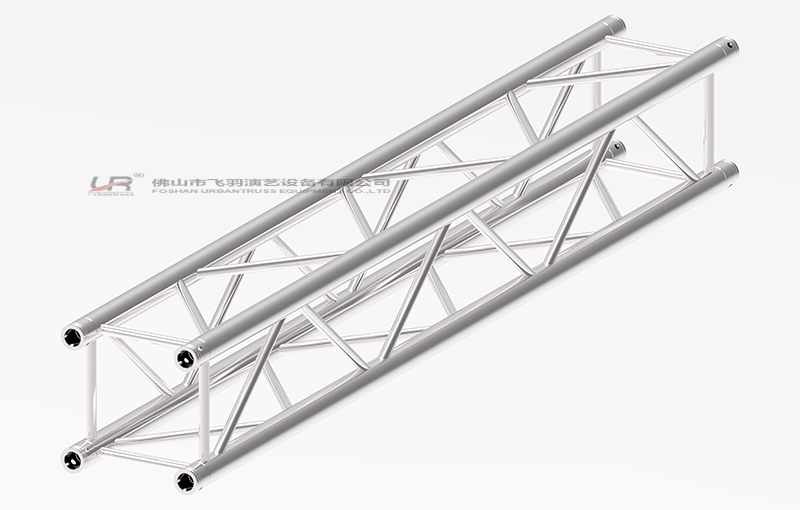

This is one of samll size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.
| Model | Description | Sizes | Length/mm | Weight/kg | ||||||||||||
| UR-QSC290-500 |
Material：6082-T6 Main Tubes：50*2.0mm Horizontal tubes：20*2.0mm Braces：20*2.0mm Spacer:50*70mm | 290*290 | 500 | 3.8 | ||||||||||||
| UR-QSC290-1000 | 290*290 | 1000 | 6.2 | |||||||||||||
| UR-QSC290-1500 | 290*290 | 1500 | 8.5 | |||||||||||||
| UR-QSC290-2000 | 290*290 | 2000 | 10.75 | |||||||||||||
| UR-QSC290-2500 | 290*290 | 2500 | 13.06 | |||||||||||||
| UR-QSC290-3000 | 290*290 | 3000 | 15.26 | |||||||||||||
