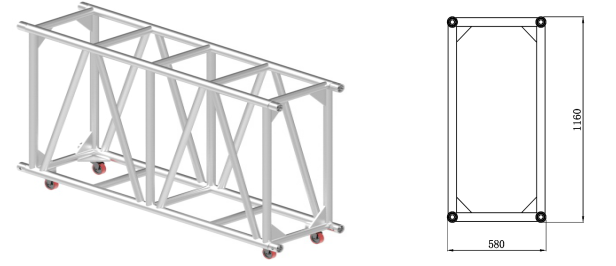

This is one of Large size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.
| Model | Description | Sizes | Length/mm | |||||||||||||
| UR-RHC1160580-1000 |
Material：6082-T6 Main Tubes Up：60*6.0mm Main Tube Down:50*6.0mm Horizontal tubes：50*3.0mmBraces：50*3.0mm Spacer:60*130mm With Wheels | 570*1150 | 1000 | |||||||||||||
| UR-RHC1160580-1500 | 570*1150 | 1500 | ||||||||||||||
| UR-RHC1160580-2000 | 570*1150 | 2000 | ||||||||||||||
| UR-RHC1160580-2500 | 570*1150 | 2500 | ||||||||||||||
| UR-RHC1160580-3000 | 570*1150 | 3000 | ||||||||||||||
