| Two side elbow | |||||||||||||
 |  |  |  | ||||||||||

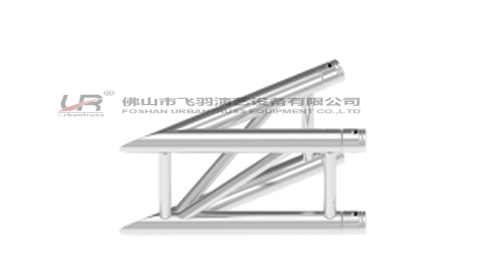

2-way Horizontal 30°corner | 2-way Horizontal 45°corner | 2-way Horizontal 60°corner | 2-way vertical 135°corner-02 | ||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||
| UR-FWC220-H302 | 900 | UR-FWC220-H452 | 600 | UR-FWC220-H602 | 500 | UR-FWC220-V1352 | 400 | ||||||
| UR-FWC220-H302 | 1300 | UR-FWC290-H452 | 900 | UR-FWC290-H602 | 700 | UR-FWC290-V1352 | 500 | ||||||
| UR-FWC220-H302 | 1600 | UR-FWC400-H452 | 1100 | UR-FWC400-H602 | 1000 | UR-FWC400-V1352 | 600 | ||||||
 |  |  |  | ||||||||||
2-way Horizontal 90°corner | 2-way Horizontal 120°corner | 2-way Horizontal 135°corner | 3-way corner A | ||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||
| UR-FWC220-H902 | 400 | UR-FWC220-H1202 | 400 | UR-FWC220-H1352 | 4000 | UR-FWC220-3A | 400 | ||||||
| UR-FWC290-H902 | 500 | UR-FWC290-H1202 | 500 | UR-FWC290-H1352 | 500 | UR-FWC290-3A | 500 | ||||||
| UR-FWC400-H902 | 500 | UR-FWC400-H1202 | 500 | UR-FWC400-H1352 | 500 | UR-FWC400-3A | 600 | ||||||
 |  |  |  | ||||||||||
2-way Horizontal 150°corner | 2-way Vertical 30°corner | 2-way Vertical 45°corner | 3-way corner B | ||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||
| UR-FWC220-H1502 | 500 | UR-FWC220-V302 | 500 | UR-FWC220-V452 | 500 | UR-FWC220-3B | 500 | ||||||
| UR-FWC290-H1502 | 500 | UR-FWC290-V302 | 500 | UR-FWC290-V452 | 500 | UR-FWC220-3B | 500 | ||||||
| UR-FWC400-H1502 | 600 | UR-FWC400-V302 | 600 | UR-FWC400-V452 | 600 | UR-FWC400-3B | 600 | ||||||
 |  |  |  | ||||||||||
2-way Vertical 60°corner | 2-way Vertical 90°corner | 2-way Vertical 120°corner | 3-way corner B | ||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||
| UR-FWC220-V602 | 400 | UR-FWC220-V902 | 400 | UR-FWC220-V1202 | 400 | UR-FWC220-3B | 400 | ||||||
| UR-FWC290-V602 | 500 | UR-FWC290-V902 | 500 | UR-FWC290-V1202 | 500 | UR-FWC290-3B | 500 | ||||||
| UR-FWC400-V602 | 600 | UR-FWC400-V902 | 600 | UR-FWC400-V1202 | 600 | UR-FWC400-3B | 600 | ||||||
 |  |  |  | ||||||||||
3-way corner C | 4-way corner A | 4-way corner C | 5-way corner A | ||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||
| UR-FWC220-3C | 400 | UR-FWC220-4A | 400 | UR-FWC220-4C | 400 | UR-FWC220-5A | 500 | ||||||
| UR-FWC290-3C | 500 | UR-FWC290-4A | 500 | UR-FWC290-4C | 500 | UR-FWC290-5A | 500 | ||||||
| UR-FWC400-3C | 600 | UR-FWC400-4A | 600 | UR-FWC400-4C | 600 | UR-FWC400-5A | 600 | ||||||
| |||
| 6-way corner | |||
| Model | L(mm) | ||
| UR-FWC220-6 | 400 | ||
| UR-FWC220-6 | 500 | ||
| UR-FWC220-6 | 600 | ||
